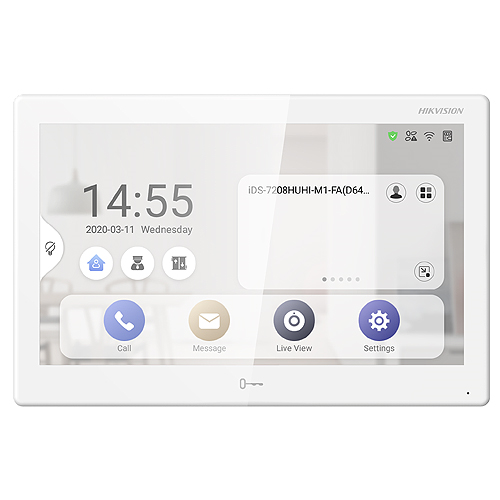

All-in-one Indoor Station
- 10.1-inch colorful touch screen with resolution 1024 × 600
- Supports Android app installation
- Open platform for the third-party software integration
- Video intercom & live view on mobile phone all-day
- Built-in Hik-Connect for all-in-one management
- Wireless intrusion panel for on-site management
- Receives 7 seconds of video verification from alarm systems
- System parameters
- Operating system : Embedded Android operation system
- ROM : 8 GB
- RAM : 1 GB
- CPU : Embedded processor
- Display parameters
- Screen size : 10.1-inch
- Operation method : Capacitive touch screen
- Type : Colorful IPS
- Resolution : 1024 × 600
- Video parameters
- Lens : /
- Resolution : /
- FOV : /
- WDR : /
- Video compression standard : /
- Focal length : /
- Audio parameters
- Audio compression standard : G.711 U, G.711 A
- Audio input : Built-in omnidirectional microphone
- Audio output : Built-in loudspeaker
- Audio compression bitrate : 64 Kbps
- Audio quality : Noise suppression and echo cancellation
- Volume adjustment : Adjustable
- Capacity
- Event capacity : 200
- Notice capacity : 200
- Linked indoor station capacity : 5
- Linked network camera capacity : 16
- Linked doorphone capacity : 17
- Network parameters
- Communication protocol : TCP/IP, SIP, RTSP
- Wired network : Support
- Wi-Fi standard : Wi-Fi 802.11 b/g/n
- Bluetooth version : /
- 3G/4G standard : /
- Zigbee : /
- Device interfaces
- Alarm input : 8
- Network interface : 1 RJ-45 10/100 Mbps self-adaptive
- TAMPER : /
- RS-485 : 1
- USB : For debug only
- TF card : Reserved
- Alarm output : 2
- Power interface : 1
- General
- Button : /
- Installation : Surface mounting
- Indicator : /
-
Without package: 875 g
With package: 1060 g
- Protective level : /
- Working temperature : -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity : 10% to 90%
- Dimensions : 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
- Battery : /
- Power supply :
IEEE802.3af, standard PoE
12 VDC, 1 A
- Application environment : Indoor
- Power consumption : ≤ 12 W
- Language : English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian
