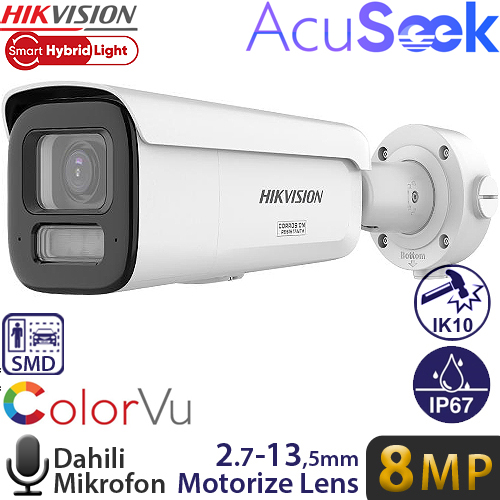

HIKVISION (DS-2CD3687G3T-LIZSU) 8MP 2.7-13.5MM IP67 120DB WDR 256GB SD ACUSEEK BULLET KAMERA 60MT
HIKVISION (DS-2CD3687G3T-LIZSU) 8MP 2.7-13.5MM IP67 120DB WDR 256GB SD ACUSEEK BULLET KAMERA 60MT
Sipariş Kodu35387
Stok KoduE35387
MarkaHIKVISION
Stok --

(DS-2CD3687G3T-LIZSU) 8MP 2.7-13.5MM IP67 120DB WDR 256GB SD ACUSEEK BULLET KAMERA 60MT

Bu ürünü paylaş:
Ürün Detayları

DS-2CD3687G3T-LIZSU



DS-2CD3687G3T-LIZSU

  • HIK AI-ISP for excellent noise reduction effect
  • 24/7 colorful imaging via ColorVu technology
  • Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
  • 130 dB WDR, support Auto mode, clear imaging against strong back light
  • AcuSense: Focus on person and vehicle classification based on deep learning
  • Motorized varifocal lens for easy installation and monitoring
  • Built-in arrayed dual-microphone for real-time high quality audio security
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • Camera
  • Image Sensor  :  1/1.8" Progressive Scan CMOS
  • Max. Resolution  :  3840 × 2160
  • Min. Illumination  :  Color: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
  • Shutter Time  :  1 s to 1/100,000 s
  • Day & Night  :  IR cut filter
  • Angle Adjustment  :  Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens Type  :  Varifocal lens, motorized lens, 2.7 to 13.5 mm
  • Focal Length & FOV  :  2.7 to 13.5 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
  • Lens Mount  :  Integrated
  • Iris Type  :  Auto-iris
  • Aperture  :  F1.2
  • Depth of Field  :  1 m to ∞
  • DORI
  • DORI  :

    Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

    Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m

  • Illuminator
  • Supplement Light Type  :  IR,White Light
  • Supplement Light Range  :  Up to 60 m
  • Smart Supplement Light  :  Yes
  • IR Wavelength  :  850 nm
  • HEOP
  • Open Resources  :

    Memory: 40 MB,

    Smart RAM: 450 MB,

    eMMC: 2 GB

  • Computing Power  :  1.5 TOPS
  • Open Capability  :  HEOP 2.0 OpendevSDK
  • Deep Learning Structure  :  Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
  • Programming Language  :  C,C++
  • Video
  • Main Stream  :

    50 Hz:

    25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz:

    30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream  :

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Third Stream  :

    50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

  • Fourth Stream  :

    50 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360)

  • Video Compression   :

    Main stream: H.265/H.264/H.264+/H.265+,

    Sub-stream: H.265/H.264/MJPEG,

    Third stream: H.265/H.264,

    Fourth stream: H.265/H.264/MJPEG,

  • Video Bit Rate  :  32 Kbps to 16 Mbps
  • H.264 Type  :  Baseline Profile,Main Profile,High Profile
  • H.265 Type  :  Main Profile
  • Bit Rate Control  :  CBR,VBR
  • Scalable Video Coding (SVC)  :  H.264 and H.265 encoding
  • Region of Interest (ROI)  :  5 fixed regions for main stream and sub-stream
  • e-PTZ  :  Support Patrol and Auto Tracking settings
  • AI Encoding  :  NA
  • Audio
  • Audio Type  :  Mono sound
  • Audio Compression  :  G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate  :  64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate  :  8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering  :  Yes
  • Network
  • Protocols  :  TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live View  :  Up to 6 channels
  • API  :  ISAPI,SDK,ISUP,ONVIF (Profile S, Profile T, Profile G, Profile M)
  • User/Host  :

    Up to 32 users

    3 user levels: administrator, operator, and user

  • Security  :  Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Network Storage  :  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
  • Client  :  iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser  :

    Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+

    Local service: Chrome 91+, Firefox 88+, Edge 91+

  • Image
  • Image Parameters Switch  :  Yes
  • Image Settings  :  Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch  :  Day,Night,Auto,Schedule
  • Image Enhancement  :  BLC,HLC,3D DNR,Distortion Correction,Defog
  • SNR  :  ≥ 52 dB
  • Wide Dynamic Range (WDR)  :  130 dB
  • Image Stabilization  :  EIS
  • Privacy Mask  :  8 programmable polygon privacy masks
  • Interface
  • Ethernet Interface  :  1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage  :  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Audio

    Built-in Microphone: Arrayed dual-microphone,  :

    1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm  :  2 input, 2 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key  :  Yes
  • Power Output  :  12 VDC, max. 100 mA
  • Event
  • Basic Event  :  Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart Event  :  Scene change detection, audio exception detection, defocus detection
  • Linkage  :  Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning
  • Deep Learning Function
  • Face Capture  :  Yes
  • People Counting  :  Yes
  • Perimeter Protection   :

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

  • General
  • Power  :

    12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: PoE(IEEE 802.3at class 4),MAX:15W

  • Material  :  Front cover: Metal, body: Metal, bracket: Metal
  • Dimension  :  334 mm × 112 mm × 112 mm (13.15" × 4.42" × 4.42")
  • Package Dimension  :  386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
  • Weight  :  Approx. 1520 g (3.4 lb.)
  • With Package Weight  :  Approx. 2326 g (5.1 lb.)
  • Storage Conditions  :  -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions  :  -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • General Function  :  Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
  • Language  :  33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Approval
  • EMC  :  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
  • Safety  :

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment  :  CE-RoHS: 2011/65/EU
  • Protection  :  IP67: IEC 60529-2013,IK10: IEC 62262:2002
