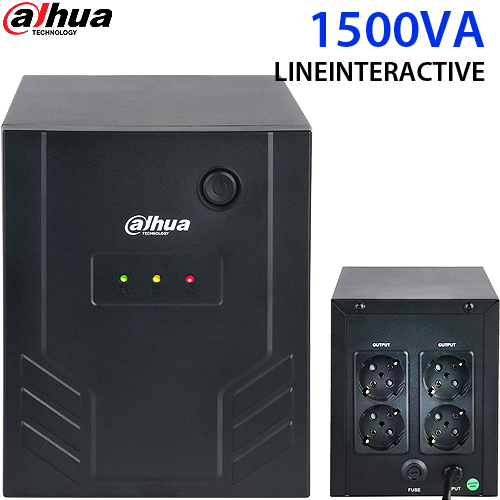

DAHUA (PFM3350-1500) 1500VA LINEINTERACTIVE GÜÇ KAYNAĞI 2x12V 7AH 5-15 DAK.)
DAHUA (PFM3350-1500) 1500VA LINEINTERACTIVE GÜÇ KAYNAĞI 2x12V 7AH 5-15 DAK.)
Sipariş Kodu35360
Stok KoduE35360
Ürün KoduPFM3350-1500
MarkaDAHUA
Stok Stok : 10

(PFM3350-1500) 1500VA LINEINTERACTIVE GÜÇ KAYNAĞI 2x12V 7AH 5-15 DAK.)

Bu ürünü paylaş:
Ürün Detayları
PFM3350-1500

European Standard 230V - Line-interactive 1500VA/900W Uninterruptible Power Supply

Key Points

Wide 170–280 VAC Input Adapts to Fluctuations and Various Grid Environments

Quiet Operation for a Serene Environment

Digital Voltage Stabilization with Automatic Voltage Adjustment

Fast Charging in Just 4 Hours

Rapid Switching of 4–8 Milliseconds

Protection Against Overload, Short Circuit, Overcharging and Over-discharge

Capacity

Capacity 1500 VA, 900 W

Input

Input Voltage 170–280 VAC
Input Current 7.2 A
Rated Input Frequency 50/60 Hz
Power Factor ≥0.6

Output

Output Voltage 230 VAC by default
Output Current 6.9 A
Output Power 1500 VA, 900 W
Output Frequency 50/60Hz
Switch Time Typical 4 ms–8 ms
Output Wave AC Mode: Pure sine wave;
Battery Mode: Simulated sine wave

Battery

Built-in Battery Yes
Battery Type Lead-acid battery
Qty.of Battery 2 × 7Ah
Charging Current 1 A
Limited Charge Voltage 13.7 V/pcs
Charging Time 4H–6H to 90%

Indicators

Status Indicator Light Battery mode: Yellow light flashes once every 10 seconds
Mains power mode: Green light solid on
Fault mode: Red light solid on

Alarm

Alarm Indicator Battery Mode: Beeps once every 10 seconds;
Low Battery: Beeps once every second;
Overload: Beeps once every 0.5 seconds;
Battery Replacement: Beeps once every 2 seconds;
Fault: Beeps continuously

Protection

Types of Protection Protects against overload, battery overcharge, and over-discharge
Overload Capacity AC Mode Overload: 110% + 20%/ – 10%. The UPS shuts down after 5 minutes and reports an overload fault;
AC Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault;
Battery Mode Overload: 120% + 20%/ – 10%. The UPS shuts down immediately and reports an overload fault

Plugs and Sockets

Input Plug European standard
Input Cable Length 1.2 m (3.94 ft)
Socket Standard European standard
Number of Output Sockets 4

Other

Built-in Fan NO

Structure

Product Dimensions 374.5 mm × 138.4 mm × 166.5 mm (14.74" × 5.45" × 6.56") (L × W × H)
Packaging Dimensions 470 mm × 195 mm × 255 mm (18.50" × 7.68" × 10.04") (L × W × H)
Casing Material Plastic front cover + metal body
Appearance Color Black
Net Weight 11.4 kg (25.13 lb)
Gross Weight 11.8 kg (26.02 lb)

Environment

Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity 0%–90%, non-condensing
Storage Temperature –15 °C to +55 °C (+5 °F to +131 °F)
Storage Humidity 0%–90%, non-condensing

Certifications

Certifications CE LVD: EN IEC 62040-1: 2019+A11: 2021;
CE EMC:
EN 62040-2: 2006;
EN IEC 62040-2: 2018;
EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024;
EN 61000-3-3: 2013+A1: 2019+A2: 2021
