Ürün Detayları

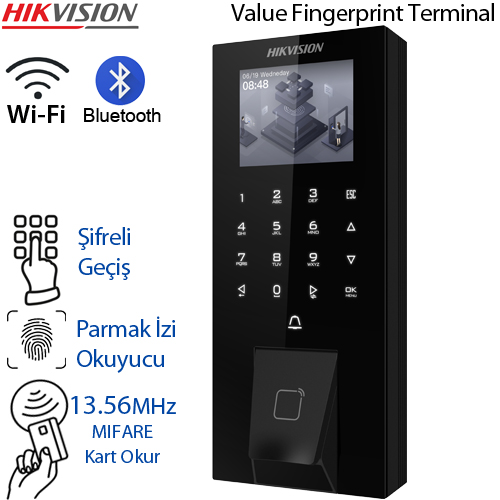

DS-K1T807MBFWX-E1
Value Fingerprint Terminal
- 2.4-inch LCD screen
- Multiple authentication methods, including fingerprint, card (M1 card), and PIN, etc.
- Max. 5000 cards, 5000 fingerprints and 150,000 events
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via web client
- Supports wired network and Wi-Fi (AP mode)
- Supports wiring with secure door control unit or card reader via RS-485
- Supports powered by 12 VDC or PoE and supports powering for device and door lock
- System
- Operating system : Linux
- Display
- Screen size : 2.4 inch
- Type : LCD
- Resolution : 320 × 240
- Audio
- Audio output : Support
- Network
- Wired network : Support
- Wi-Fi : Support, 2.4 G, 802.11b/g/n
- Bluetooth : Support
- Interface
- Network interface : 1 RJ-45, 10/100 M self-adaptive
- Lock control : 1
- Exit button : 1
- Door contact input : 1
- Alarm input : 2
- TAMPER : 1
- Alarm output : 1
- RS-485 : 1 RS-485 (Half duplex, HIKVISION)
- Wiegand : 1 Wiegand (W26, W34)
- USB : 1
- PoE : Support
- Capacity
- Fingerprint capacity : 5000
- Card capacity : 5000
- Event capacity : 150,000
- Authentication
- Card type : M1 card
- Fingerprint module : Optical fingerprint module
- Fingerprint comparing mode : 1:1 and 1:N
- General
- Power supply :
12 VDC
Supports power supply by battery in the bracket
- Power consumption : ≤ 6 W
- Working temperature : -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity : 0 to 90% (No condensing)
- Language : English, Spanish (South American), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese(Brazil), Turkish, Ukrainian, Italian, French
- Keypad : Support
- Dimensions : 172 mm × 76 mm × 27.5 mm (6.77" × 2.99" × 1.08")
- Installation : Wall mounting
-
Net weight: 0.377 kg (0.831 lb)
Rough weight: 0.562 kg (1.239 lb)
