DS-K1T804AMF

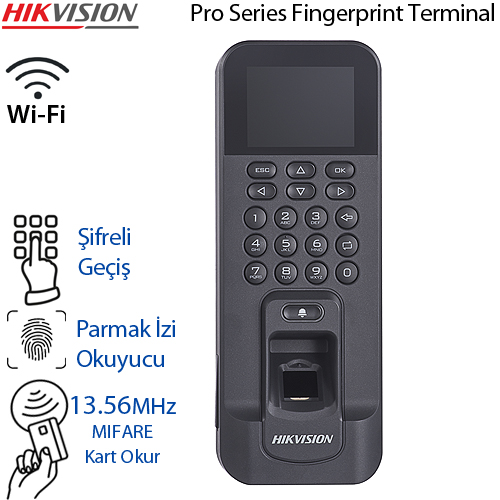

K1T804A Pro Series Fingerprint Terminal
- Integrated management of access control and the time and attendance functions
- 3,000 fingerprints, 3,000 cards and 100,000 events storage
- Built-in card reader for Mifare1 card
- Communication via TCP/TP and Wi-Fi
- RS-485, wiegand interface
- Alarm input and output interface
- ISUP5.0, ISAPI
- Display
- Screen size : 2.4-inch
- Resolution : 320 × 240
- Type : LCD-TFT display screen
- Audio
- Audio output : 1 loudspeaker, 1 buzzer
- Network
- Wired network : TCP/IP, 10/100Mbps, self-adaptive
- Wi-Fi : Support
- Interface
- Network interface : 1
- RS-485 : 1
- Wiegand : 1
- Lock control : 1
- Exit button : 1
- Door contact input : 1
- Alarm input : 1
- Alarm output : 1
- TAMPER : 1
- USB : 1
- Capacity
- Card capacity : 3000
- Fingerprint capacity : 3000
- Event capacity : 100,000
- Authentication
- Card type : M1 card
- Card reading distance : 0 to 4.5 cm
- Card reading duration : < 1 s
- Fingerprint module : Optical fingerprint module
- Fingerprint comparing mode : 1:1 and 1:N
- Fingerprint recognition duration : < 1 s
- General
- Indicator : Power/status (red/green)
- Power supply : 12 VDC/1 A
- Working temperature : -10 °C to +55 °C (14 °F to +131 °F)
- Working humidity : 10% to 90% (no condensing)
- Color : Black (included), gold (optional), silver (optional), white (optional)
- Dimensions : 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
- Installation : Surface mounting
- Language : English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
