Ürün Detayları
BAĞIMSIZ OLARAK ÇALIŞMAZ !
Aşağıdaki Geçiş Kontrol Panelleriyle Çalışır.
DS-K2804 - DS-K2814 - DS-K2604 - DS-K2604T

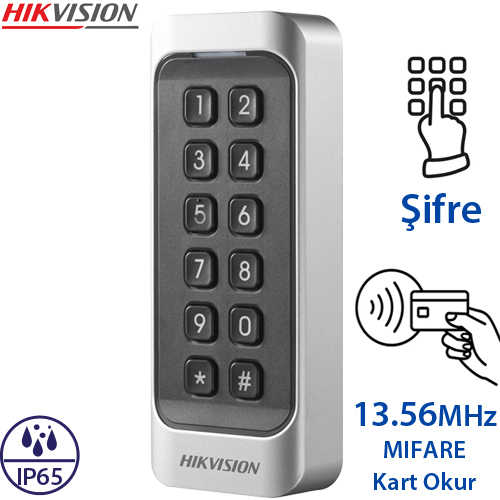

DS-K1107AMK
Card Reader
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in M1 card reading module (Frequency: 13.56MHz).
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
- Interface
- TAMPER : 1
- RS-485 : 1
- Wiegand : 1 (set via DIP switch)
- Authentication
- Card reading frequency : 13.56 MHz
- General
- Power supply : 12 VDC
- Power consumption : ≤ 2 W
- Working temperature : -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity : 10% to 90% (no condensing)
- Protective level : IP65
- Dimensions : 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
- Installation : Wall mounting with screws; Do not support gang box
-
Gross weight: 0.25 kg (0.55 lb)
Net weight: 0.16 kg (0.35 lb)
- Keypad : 12 Keys (0 to 9, *, #)
- Buzzer : Support
