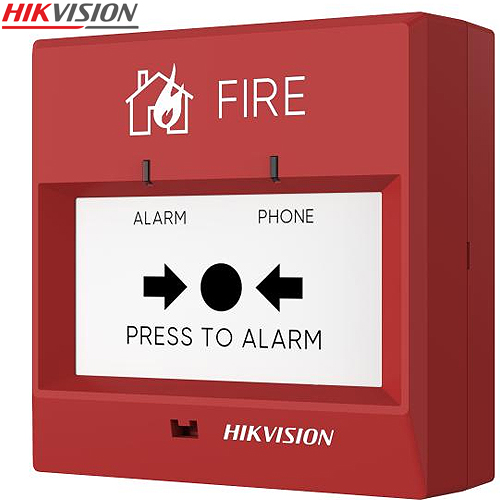

Conventional Manual Call Point (with base)
- Two-wire, convenient for construction wiring.
- Using resettable operating panel, reset by special key.
- Each mounting base contains a reset key, which can be used on demand.
- Bus Parameters
- Wiring requirements : RVS 2*1.5 mm² Flame Retardant Wire, Max distance: 500 m
- General
- 99 g
- Main Power Supply : DC 24 V(DC 18 V~DC 28 V)
- Indicator : 2 Red, 1 for Fire Alarm
- Wiring : 1 is for L+, 2 is for L-, 3 is for PHONE+, 4 is for PHONE-
- Reset mode : Special key manual reset
- Monitor Current : ≤ 200 μA
- Alarm Current : ≤ 10 mA
- Product Dimension : L 86 mm * W 86 mm * H 34 mm (with base)
- Alarm Mode : Manually press the starting part
