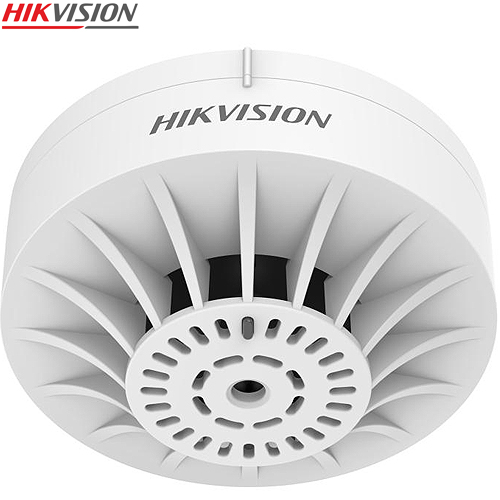

Conventional Heat Detector (with base)
- The fire alarm confirmation light adopts a light guide column for conduction, visible at 360°.
- Two-wire, convenient for construction wiring.
- High reliability sensor design, suitable for environments such as high humidity basements.
- Intelligent temperature compensation algorithm improves the response ability under different temperature rise conditions.
- Bus Parameters
- Wiring requirements : RVS 2*1.5 mm² Flame Retardant Wire, Max distance: 500 m
- General
- Main Power Supply : DC24V(DC18V~DC28V)
- Product Dimension : Φ 100.0 mm × H 49.0 mm (with base)
- 92 g
- Indicator : 1 Red
- Monitor Current : ≤ 300 μA
- Wiring : Two-wire, 1 is for L-, 3 is for L+ ; 2 is for R-, 4 is for R+/OUT
- Alarm Current : ≤ 15mA
