Ürün Detayları

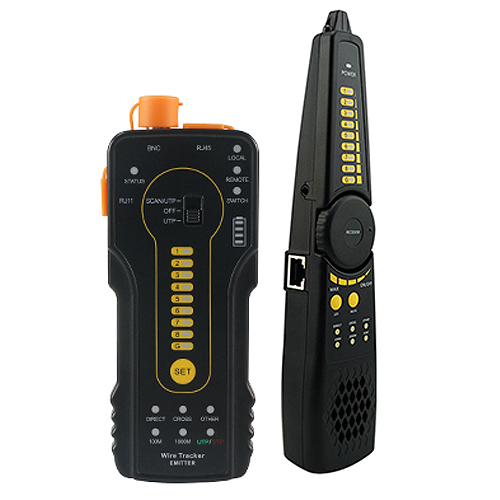

Multi-functional RJ11 RJ45 CCTV Cable Tester Wire Tracker
Model: CT-66
? Cable tracer, can search UTP cable, BNC cable from mess cable
? Identify cable type:100M/1000M, straight/cross/other.
? UTP/STP/RJ45/RJ11 cable scan and continuity testing
? UTP port support max 60V withstand voltage
? Identify the status in the working telephone line: standby, ringing and off-hook
? PD powered detection: detect whether the power output of the POE switch is normal, and detect the pins used for power supply.
? Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily
? Cable tracer and UTP cable test at the same time.
? Identify cable type:100M/1000M, straight/cross/other
? UTP/STP/RJ45/RJ11 cable scan and continuity testing
? Identify the status in the working telephone line: standby, ringing and off-hook
? Quickly detect the near-end, mid-end and far-end fault point of RJ45 cable connector
? UTP port support max 60V withstand voltage, the wire can be traced directly in connection with PoE switch
? Shielded cable and shielding layer continuity test
? Detect the short circuit of cable NEW
? Detect the link continuity of the switch port NEW
? PD powered detection: detect whether the power output of the POE switch is normal,
and detect the pins used for power supply.
? Support silent mode
? Two bright LED lights for working in the dark
|
Item |
Wire Tracker CT-66 |
|
Emit signal |
Digital signal(rejects noise and false signals ) |
|
Cable type |
RJ45 Twisted pair, RJ11 telephone line, BNC cable etc. |
|
UTP cable test |
The digital “1-8” for cable sequence shielded cable and shielding layer continuity indicator, check cable type indicator: straight/cross/other, 100M/1000M Network cable test, and near-end, mid-end, far-end continuity testing |
|
Continuity test of RJ45 cable connectors |
Check wire continuity of both RJ45 cable connector |
|
PD (powered) test |
PoE switch power supplying status test and check the pins used for power supply. |
|
LED lamp |
Short press ON /OFF LED Light |
|
Silent mode |
Long press key “Mute” to switch silent mode, find cable through indicator |
|
Audio output |
Support external audio output |
|
Power supply |
|
|
External power supply |
Two AA battery |
|
General |
|
|
Working Temperature |
-10?---+50? |
|
Working Humidity |
30%-90% |
|
Dimension |
|
|
Emitter Dimension |
152mm x 62mm x 27mm /0.12KG |
|
Receiver Dimension |
218mm x 48mm x 32mm /0.1KG |
