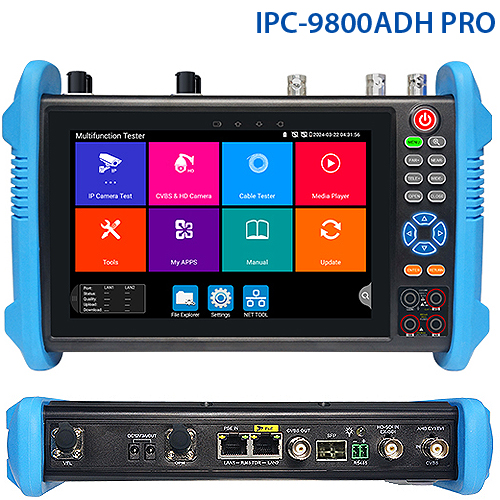

POE++ 7 inch 8K H.265 HDMI VGA SFP CCTV Camera Tester
Model: IPC-9800 Pro series
? 7 inch IPS touch screen, 1280*800 resolution
? 8K H.265 video display via mainstream
? Dahua, Hikvision, Axis etc ONVIF camera test
? HDMI input 4K 30FPS,HDMI output 4K 60FPS*
? VGA input support 1920*1080P*
? DC24V 2A, Dual DC12V 3A, PoE++ 90W power output New
? Brand new dual gigabit Ethernet ports, gigabit SFP port New
? UTP cable test/RJ45 cable TDR test, cable quality test
? TesterPlay, support remote control and voice intercom
? Backlight buttons, easier to operate in the dark
? Support TVI intercom,TVI coaxial audio test New
? Upgrade the memory to 2GB + 32GB New
? Detection of switch ports supporting LLDP or CDP protocol New
Camera test:
? 7 inch IPS touch screen, 1280*800 resolution
? 8K H.265 video display via mainstream
? Analog camera test and PTZ control
? 8MP TVI test,3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu, Support TVI intercom
? 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu
? 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
? Rapid ONVIF, Auto log in and display image, create testing report
? AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
? IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
? DC24V 2A,Dual DC12V 3A power output, camera can be powered from tester
? 55V PoE++ power output power, max power 90W
? Rapid video, just by one key to detect all network cameras and auto display
? Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
? CVBS loop test, the tester can send and receive color bar generator signal, to check BNC cable
? Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:
? Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
? RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
? Cable Length, BNC cable, network cable, telephone cable, RVV cable, elevator cable, and cat 5/6 cable’s length test. Max measurement for cable’s open is 1.5KM. (Short circuit length test not supported) *
Other functions:
? Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength
? Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
? POE & power information, DC12V & PoE power and voltage output / input measurement
? TesterPlay: Tester, android version mobile phone and PC display at the same time
? Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
? HDMI input support 4K 30FPS, HDMI output support 4K 60FPS *
VGA input support 1920*1080P*
? Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
? Self-updated software, you can install apps with android version
? Media player, 4K video files and MKV/MP4 media files play
? Quick office, quick office app (support excel, word, ppt format) doc. editable
? 8GB SD card included
? Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
? 11.1 V /5200mAh Lithium Ion Polymer Battery, after 3.5 hours fast charging, working time lasts 13 hours
