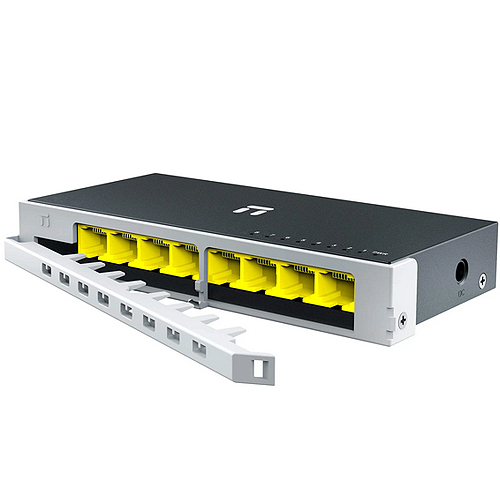

ST108GD
8 Port Gigabit Ethernet Switch
Ürün Detayları
- Attached safety lock, more stable connection
- High-quality steel housing, more durable
- 8*10/100/1000 Mbps adaptive ports
- LED: 9 sapphire green LED indicators
- All ports support Auto MDI/MDI-X
- Plug and play without configuration, green energy saving more power saving
- Power supply: 5V-800mA
Hardware
|
Interface |
8 * 10/100/1000M RJ45 adaptive port |
|
Forwarding rate |
10/100/1000Mbps |
|
LED |
PWR,1-8 RJ45 Port |
|
Standard Protocol |
IEEE802.3,IEEE802.3u ,IEEE802.3x |
|
Backplane Bandwidth |
16Gbps |
|
MAC address table |
2K |
|
Operation mode |
Half-duplex, full-duplex modes Auto-negotiation modes MDI/MDI-X auto-adaptation |
|
Power |
DC 5V/800mA |
|
Forwarding mode |
Store-and-forward |
|
Access mode |
CSMA/CD |
Others
|
Dimensions |
150*70*22.55 mm(L*W*H) |
|
Environment |
Operating Temperature : 0? ~ 40? Operating Humidity : 10% ~ 90% RH non condensing Storage Temperature : -20? ~ 70? Storage Humidity : 5% ~ 90% RH non condensing |
