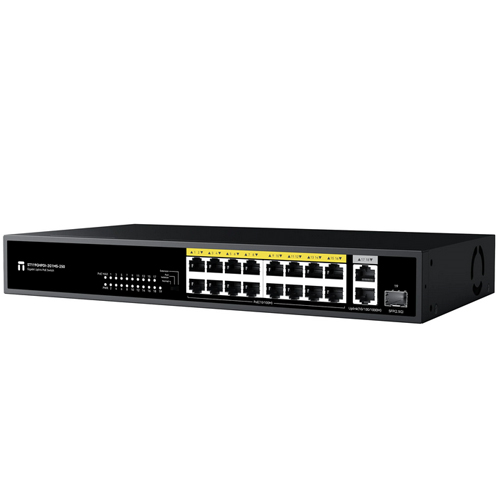

(ST119GHPDI-2G1MS-250) 16 PORT POE 10/100 + 2 PORT UPLINK GIGABIT 1x2,5G SFP 250W POE SWITCH

Name: STONET (ST119GHPDI-2G1MS-250) 16 PORT POE 10/100 + 2 PORT UPLINK GIGABIT 1x2,5G SFP 250W POE SWITCH
Brand: STONET
SKU: E35200
Price: 90.0 TRY
Availability: InStock

Bu ürünü paylaş:

Ürün Detayları

ST119GHPDI-2G1MS-250

16FE PoE+2GE Uplink + 2.5G SFP PoE Switch

16* 10/100M PoE ports+2* 10/100/1000M uplink ports+1* 2.5G SFP port.
Internal 250W power supply with up to 30W PoE output per port.
Durable steel housing for better heat dissipation.
Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
All ports support auto MDI/MDI-X function.
Equipped with a convenient DIP switch that can be easily switched between Normal mode, Port Isolation mode, and Extension mode.

LED Indicators

PWR On	The switch is powered on.
PWR Off	The switch is powered off.
Port Indicator (Link/ACT) On	The corresponding port is connected to a network device but no activity
Port Indicator (Link/ACT) Flashing	Data is transmitting through the corresponding port.
Port Indicator (Link/ACT) Off	No device is connected to the corresponding port.
PoE MAX On	Lights up when the PoE power supply exceeds 110W.
PoE MAX Flashing	PoE power supply reaches the maximum PoE output.
PoE MAX Off	the PoE power supply did not exceed 110W.

Hardware

Ports	16100Mbps POE ports 21000Mbps uplink ports 1*2500Mbps SFP+
DIP Switch	Normal/Port isolation/Extension
Backplane Bandwidth	12.2Gbps
MAC Address Table	8K
Input Power	100-240V~ 50/60Hz
Power Supply	250W
Maximum POE Output Power	225W
Network Media & Transmission Distance	1000BASE-T: UTP category 5, 5e, 6 or above cable (≤ 100m) 100Base-TX: UTP category 5, 5e, 6 Category 5 (Cat5) or higher UTP/STP cables (≤100m) 10Base-TX: UTP category Category 6 (Cat6) or higher UTP/STP cables (≤250m) Tips:The actual transmission distance is related to the connected terminal/network cable type and condition; it is recommended to use Category 6 cable preferentially.

Software

Basic Functions

Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards
Compatible with IEEE 802.3af/at compliant powered devices (PD)
Compatible with certified non-standard powered devices (PD)
Supports store-and-forward switching
Supports full power output
Supports automatic MAC address learning and aging
Extended cable transmission,supports long-distance monitoring power supply
Supports IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control

Ethernet Protocols and Standards

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af/at, Power over Ethernet
IEEE 802.3x Flow Control

Environmental Requirements

Temperature	Operating Temperature:0? ~ 45?(32 °F ~113°F) Storage Temperature:-40? ~ 70?(-40°F ~158°F)
Humidity	Operating Humidity:10% ~ 90% RH(non-condensing) Storage Humidity:5% ~ 90% RH(non-condensing)

Lightning Surge Protection

Common Mode

6KV

Physical Dimensions

Dimensions

(W x D x H)

330*180.9*45mm(12.99x7.12x1.77 in)

Packaging and Transportation

Protective Packing

EPE protection

Others

Storage Temperature	-40? ~ 70?(-40°F ~158°F),with the most suitable storage condition being room temperature considering humidity
Storage Precautions	Store in a clean,ventilated environment free from corrosive gases,flammable,explosive,and other hazardous chemicals.Keep away from heat sources and sources of strong mechanical vibration
Storage Period	Under the above conditions,the product can be stored for one year.It is recommended to re-inspect and test the product after two years before use
