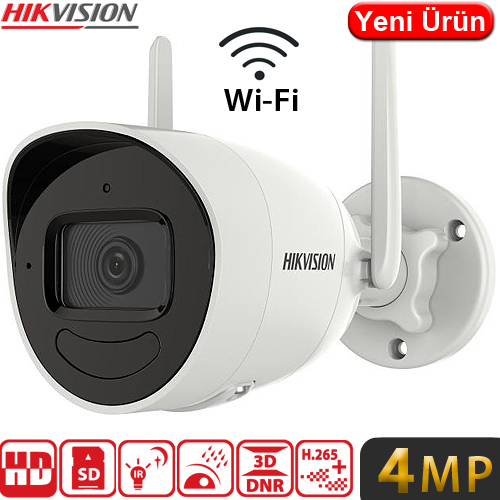

4 MP Outdoor Audio Fixed Bullet Network Camera
- High quality imaging with 4 MP resolution
- Realizing Wi-Fi connection and easy installation
- Provides real-time security via built-in two-way audio
- EXIR 2.0, advanced infrared technology with long IR distance
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP66)
- Camera
- Image Sensor : 1/3" Progressive Scan CMOS
- Max. Resolution : 2560 × 1440
- Min. Illumination : Color: 0.5 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time : 1/25 s to 1/10000 s
- Day & Night : IR cut filter
- Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type : Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV :
2.8 mm, horizontal FOV 97°, vertical FOV 53°, diagonal FOV 117°
4 mm, horizontal FOV 82°, vertical FOV 44°, diagonal FOV 100°
- Aperture : F1.6
- Iris Type : Fixed
- Lens Mount : M12
- Depth of Field :
2.8 mm: 1 m to ∞
4 mm: 1.5 m to ∞
- DORI
- DORI :
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light Type : IR
- IR Wavelength : 850 nm
- Supplement Light Range : Up to 30 m
- Smart Supplement Light : Yes
- Video
- Main Stream :
50 Hz:
20 fps (2560 × 1440),
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440),
30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream :
50 Hz: 25 fps (768 x 432, 512 × 288)
60 Hz: 30 fps (768 x 432, 512 × 288)
- Video Compression :
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate : 256 Kbps to 4 Mbps
- H.264 Type : Baseline Profile,Main Profile,High Profile
- H.265 Type : Main Profile
- Bit Rate Control : CBR,VBR
- Audio
- Audio Compression : G.711/G.722.1/G.726/PCM/AAC-LC
- Audio Bit Rate : 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate : 8 kHz/16 kHz
- Environment Noise Filtering : Yes
- Network
- Protocols : TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, Bonjour
- Simultaneous Live View : Up to 4 channels
- API : NA
- Security : Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS
- User/Host : Only one user: administrator
- Network Storage : NAS (NFS, SMB/CIFS),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client : Hik-Connect, iVMS-4200
- Web Browser : NA
- Wi-Fi
- Transfer Rate : 11n: up to 300 Mbps
- Wi-Fi Protocol : 802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
- Frequency Range : 2.412 GHz to 2.472 GHz
- Channel Bandwidth : 20 MHz
- Modulation802.11n: BPSK, QPSK, 16QAM, and 64QAM,802.11b: DBPSK and DQPSK, CCK,802.11g: BPSK, QPSK, 16QAM, and 64QAM
- Wireless Range : Up to 120 m (The performance varies based on actual environment)
- Antenna : 2 Antennas
- Image
- Image Settings : Auto
- Day/Night Switch : Auto, Schedule, Day, Night
- Wide Dynamic Range (WDR) : 80 dB
- SNR : ≥ 52 dB
- Image Enhancement : BLC, 3D DNR
- Interface
- Built-in Microphone : Yes
- Built-in Speaker : Yes
- On-Board Storage :
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key : Yes
- Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)), exception
- Linkage :
Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture
- General
- Power : 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
- Language : English
- Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function : Heartbeat, mirror, password protection
- Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Material : Front cover: metal, back cover: plastic
- Dimension : 175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
- Package Dimension : 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
- Weight : Approx. 345 g (0.8 lb.)
- With Package Weight : Approx. 635 g (1.4 lb.)
- Approval
- EMC :
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- RFCE-RED (EN 301489-1 V2.1.1(BT or 2.4G)
- Safety :
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment :
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection : IP66: IEC 60529-2013
