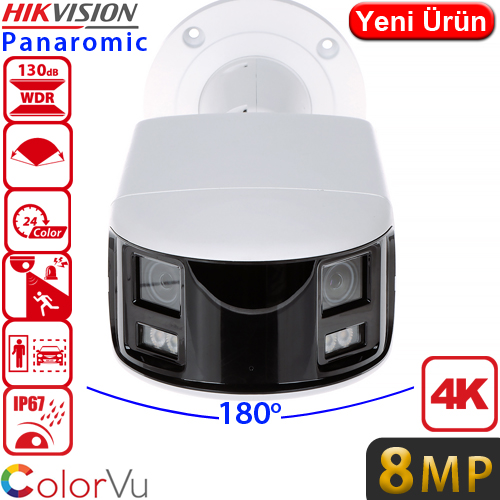

(DS-2CD2T87G2P-LSU/SL) 8MP PANORAMIC ACUSENSE BULLET KAMERA 40MT

8 MP Panoramic ColorVu Fixed Bullet Network Camera

Video
Main Stream :
When WDR is On:

50 Hz: 12.5 fps (5120 × 1440)

60 Hz: 15 fps (5120 × 1440)

When WDR is Off:

50 Hz: 20 fps (5120 × 1440)

60 Hz: 20 fps (5120 × 1440)
Sub-Stream :
When WDR is On:

50 Hz: 12.5 fps (1920 × 536, 960 × 272)

60 Hz: 15 fps (1920 × 536, 960 × 272)

When WDR is Off:

50 Hz: 20 fps (1920 × 536, 960 × 272)

60 Hz: 20 fps (1920 × 536, 960 × 272)
Video Compression :
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 16 Mbps
H.264 Type : Baseline Profile,Main Profile,High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR,VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 1 fixed region for main stream

Audio
Audio Type : Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering : Yes

Network
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host :
Up to 32 users

3 user levels: administrator, operator, and user
Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage :
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client : iVMS-4200,Hik-Connect,Hik-Central
Web Browser :
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch : Yes
Image Settings : saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch : Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) : 130 dB
SNR : ≥ 52 dB
Image Enhancement : BLC,HLC,3D DNR
Privacy Mask : 8 rectangular privacy masks

Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone : Yes
Built-in Speaker : Max. power consumption: 1 W, max. sound pressure: 10 cm: 97 dB
Audio :
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm : 1 input, 1 output (max. 24 VDC, 1 A)
Reset Key : Yes

Event
Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
Smart Event : scene change detection
Linkage : Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function
Perimeter Protection :
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General
Power :
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,

PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material : Front cover: metal, body: metal, bracket: metal
Dimension : 118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12")
Package Dimension : 405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")
Weight : Approx. 1420 g (3.1 lb.)
With Package Weight : Approx. 2228 g (4.9 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function : Anti-banding, heartbeat, password reset via email, password protection, one-key reset
Flashing Light : Yes
