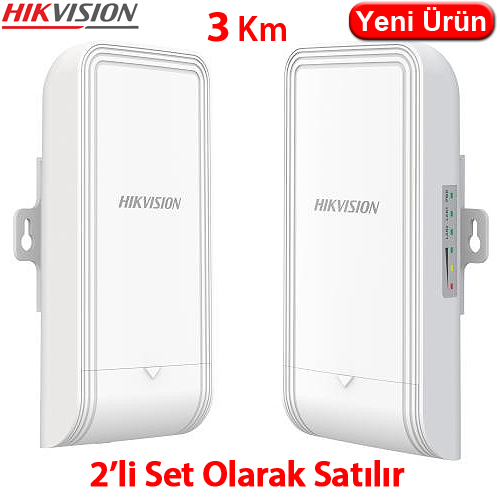

5Ghz 867Mbps 3KM Wireless Bridge Kit
- Up to 3 km wireless transmission distance
- 867 Mbps 802.11ac wireless bridge
- Built-in 8 dBi 2 x 2 MIMO antenna
- Visualized topology management
- Standard PoE Input & Output
- Plug and Play
- General
- Product Dimensions (W × H × D) : 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
- Package Dimensions (W × H × D) : 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
- Net Weight : 0.26 kg (0.57 lb) per device
- Gross Weight : 1.1 kg (2.43 lb)
- Packing List : Wireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
- Packing Method : Packing in pairs
- Working Temperature : -30 °C to 65 °C (-22 °F to 149 °F)
- Working Humidity : 5% to 95% (no condensation)
- Storage Temperature : -40 °C to 80 °C (-40 °F to 176 °F)
- Storage Humidity : 5% to 95% (no condensation)
- Installation Mode : Pole Mounting
- Ingress Protection : IP55
- Power Consumption : 2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W
- Wireless Parameter
- Max. Transmission Rate of Air Interface : ≤ 867 Mbps
- Wireless Standard : IEEE 802.11/a/n/ac
- Working Frequency Band : 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
- Antenna Gain : 8 dBi
- Antenna Angle : (H) Beamwidth [3 dB] 50° (V) Beamwidth [3 dB] 50°
- Transmitting Power : 22 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.)
- Receiving Sensitivity : -84 ±2dBm@AC80-MCS0
- Throughput Rate : PTP: ,90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/3 KM(AC80),PTMP(1 to 4): ,20 Mbps/3 KM(AC80)
- PoE Power Supply
- PoE Port : AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
- PoE Power Budget : 10 W
- PoE Distance : 100 m
- Hardware Parameter
- Network Interface : 2 × 10/100 Mbps RJ45 ports
- LED Indicator : Power indicator,LAN indicator,Signal intensity indicator
- Reset : Hardware resetting button
- Power Supply : 48V PoE/12~24V DC;Check the physical interface image below for more details.
- Software Function
- Application Function : IFM,IPM,DFS,TPC
- Channel Width : 20/40/80 MHz
- Channel Selection : Auto/manual selection
- Security Mode : WPA2-PSK
- Security Mechanism : Wireless network name hidden
- Network Protocol : NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
- Management Method : HCP,Web,iVMS-4200,HPP
- System Log : Syslog,Control center information
- Upgrade : Web,iVMS-4200,HCP,HPP
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Reboot device
2. Restore device
3. Display the topology information
4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate.
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
6. Bridge alignment
7. Spectrum scanning
8. PoE output management
- Approval
- EMC : CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- Safety : CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry : CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- Radio : EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
