Ürün Detayları

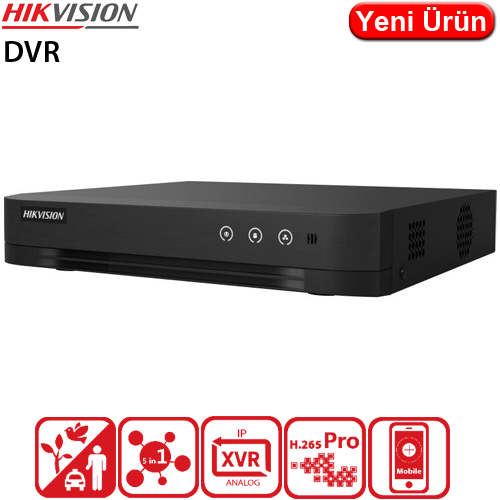

8-ch 1080p Lite 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 10-ch IP camera input (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI signal
- Motion Detection 2.0
- Human/Vehicle Analysis : Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Video and Audio
- IP Video Input : 2-ch (up to 10-ch) Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input : 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
- AHD Input : 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
- CVBS Input : Support
- HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode : HDMI/VGA simultaneous output
- Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
- Audio Output : 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio : Reuse the first audio input
- Synchronous playback : 8-ch
- Recording
- Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution :
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate : 32 Kbps to 4 Mbps
- Stream Type : Video, Video & Audio
- Audio Compression : G.711u
- Audio Bitrate : 64 Kbps
- Network
- Remote Connection : 64
- Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
- Total Bandwidth : 72 Mbps
- Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA : 1 SATA interface
- Capacity : Up to 4 TB capacity for each disk
- USB Interface : Rear panel: 2 × USB 2.0
- Alarm In/Out : N/A
- General
- Power Supply : 12 VDC, 1.5 A
- Consumption : ≤ 17 W (without HDD)
- Working Temperature : -10 °C to 55 °C (14 °F to +31 °F)
- Working Humidity : 10% to 90%
- Dimension (W × D × H) : 263 × 227 × 48 mm (10.4 × 8.9 × 1.9 inch)
≤ 1 kg (without HDD, 2.2 lb.)
