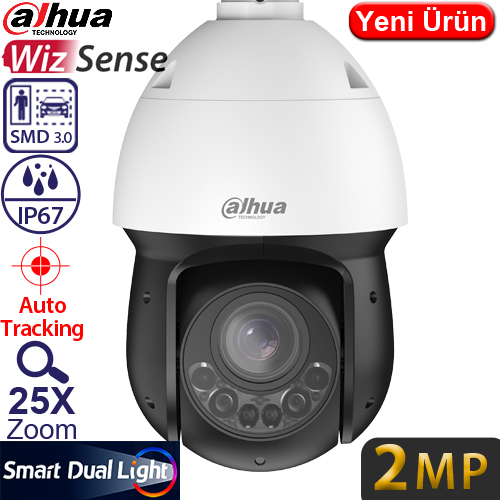

DAHUA (SD4D225DB-HNY) 2MP 25X SMART DUAL LIGHT WIZSENSE IP PTZ KAMERA
DAHUA (SD4D225DB-HNY) 2MP 25X SMART DUAL LIGHT WIZSENSE IP PTZ KAMERA
Sipariş Kodu34970
Stok KoduE34970
Ürün KoduSD4D225DB-HNY
MarkaDAHUA
Stok Stok : 5

(SD4D225DB-HNY) 2MP 25X SMART DUAL LIGHT WIZSENSE IP PTZ KAMERA

Bu ürünü paylaş:
Ürün Detayları
SD4D225DB-HNY
2MP 25x Smart Dual Light WizSense Network PTZ Camera
> 1/2.8" 2Megapixel STARVIS™ CMOS.
> 25× optical zoom.
> Starlight technology.
> IR distance up to 100 m.
> Warm light distance up to 50 m.
> Max. 25/30 fps@1080p.
> H.265 encoding.
> Perimeter protection.
> Face Detection,Up to 8 faces captured simultaneously.

Camera
Image Sensor
1/2.8" CMOS
Pixel
2 MP
Max. Resolution
1920 (H) × 1080 (V)
ROM
256 MB
RAM
512 MB
Electronic Shutter Speed
1/1 s–1/30,000 s
Scanning System
Progressive
Min. Illumination
Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)
Illumination Distance
100 m (328.08 ft) (IR); 50 m (164.04 ft) (warm light)
Illuminator On/Off Control
Zoom Prio; Manual; Auto; Off
Illuminator Number
2 (dual light Fusion)
2 (IR)
2 (warm light)
Lens
Focal Length
4.8 mm–120 mm
Max. Aperture
F1.6–F3.5
Field of View
H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2°
Optical Zoom
25×
Focus Control
Auto; semi-auto; manual
Close Focus Distance
0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control
auto
DORI Distance
Lens
Detect
Observe
Recognize
Identify
W
66.2 m
( 217.21 ft)
26.5 m
( 86.88 ft)
13.2 m
( 43.44 ft)
6.6 m
( 21.72 ft)
T
1655.2 m
( 5430.29 ft)
662.1 m
( 2172.12 ft)
331.0 m
( 1086.06 ft)
165.5 m
( 543.03 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range
Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°
Manual Control Speed
Pan: 0.1°/s–80°/s
Tilt: 0.1°/s–80°/s
Preset Speed
Pan: 80°/s; Tilt: 80°/s
Preset
300
Tour
8 (up to 32 presets per tour)
Pattern
5
Scan
5
Power-off Memory
Yes
Idle Motion
Preset;Pattern;Tour;Scan
PTZ Protocol
DH-SD
Pelco-P/D (Auto recognition)
Intelligence
IVS (Perimeter Protection)
Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
Face Detection
Supports face detection, capturing pictures, and face enhancement
Smart Tracking
Auto Tracking 1.0
SMD
SMD 3.0
Auto Patrol
It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets.
Video
Video Compression
Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream 1)
Streaming Capability
3 streams
Resolution
1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate
Main stream: 1080p/960p/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 1080p/960p/720p@(1–25/30 fps)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 1792 kbps–8192 kbps
H.265: 512 kbps–5632 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
WDR
120 dB
HLC
Yes
White Balance
Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control
Auto; manual
Noise Reduction
2D NR; 3D NR
Motion Detection
Yes
Region of Interest (RoI)
Yes
Image Stabilization
Electronic Image Stabilization (EIS)
Defog
Electronic
Digital Zoom
16×
Image Rotation
180°
Privacy Masking
Up to 24 areas can be set, with up to 8 areas in the same view
S/N Ratio
≥ 55 dB
Audio
Audio Compression
G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729
Network
Network Port
RJ-45 (10/100 Base-T)
Network Protocol
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS
Interoperability
ONVIF (Profile S & Profile G & Profile T);CGI;SDK
Streaming Method
Unicast/Multicast
User/Host
20 (total bandwidth: 64 M)
Storage
FTP; Micro SD card (512 GB); NAS
Browser
IE 7 and later versions
Chrome
Firefox
Safari
Management Software
DSS;DMSS
Mobile Client
iOS;Android;iPhone;iPad
Certification
Certifications
CE: EN55032/EN55024/EN50130-4
Port
Audio Input
1 channel (LINE IN, bare wire)
Audio Output
1 channel (LINE OUT,bare wire)
Alarm Input
2
Alarm Output
1 channel
Alarm Linkage
Capture; preset; tour; pattern; recording; alarm digital input; audio; send email
Alarm Event
Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Alarm I/O
2/1
Audio I/O
1/1
Power
Power Supply
12 VDC/3 A ± 10%
PoE+ (802.3at)
Power Consumption
Basic: 12 W
Max.: 20 W (PTZ operation+WDR+Warm light on)
Power Adapter
Optional
Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
≤ 95%
Protection
IP67;TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions
270.4 mm × Φ160.0 mm (10.65" × Φ6.30")
Net Weight
2.4 kg (5.29 lb)
Gross Weight
3.9 kg (8.60 lb)
