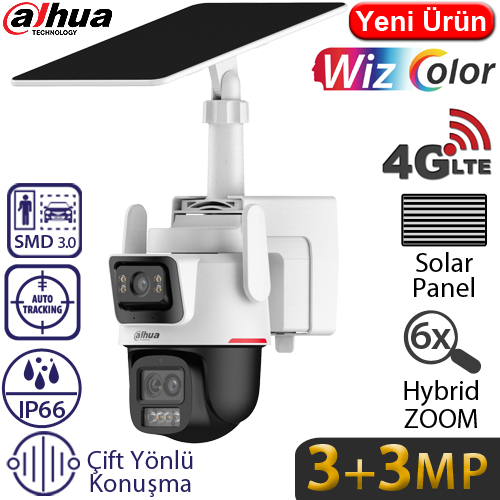

(IPC-PTS2649C-3E3Z-4GB20) 3+3MP IR 4G WIZCOLOR SOLAR GÜNEŞ ENERJİ DESTEKLİ IP PT KAMERA

Camera

Image Sensor

Fixed Lens: 1/2.8" CMOS
PT Lens: 1/2.8" CMOS

Pixel

Fixed Lens: 3 MP
PT Lens: 3 MP

Max. Resolution

Fixed Lens: 2304 (H) × 1296 (V)
PT Lens: 2304 (H) × 1296 (V)

ROM

256 MB

RAM

256 MB

Scanning System

Progressive

Min. Illumination

Fixed Lens:
0.0005 lux@F1.0 (Color, 30 IRE);
0 lux (Illuminator on)
PT Lens:
0.0005 lux@F1.0(Color, 30 IRE);
0 lux (Illuminator on)

Illumination Distance

Fixed Lens: 30 m (98.43 ft) (Warm light)
PT Lens: 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control

Fixed Lens: Manual; Auto; Off
PT Lens: Manual; Auto; Off

Illuminator Number

Fixed Lens: 4 (Warm light)
PT Lens: 4 (Warm light)

Lens

Focal Length

Fixed Lens: 2.8 mm
PT Lens: 3.6 mm; 8.4 mm

Max. Aperture

Fixed Lens: F1.0
PT Lens: 3.6 mm: F1.0; 8.4 mm: F1.0

Field of View

Fixed Lens:
H: 93.5°; V: 51.9°; D: 110.1°
PT Lens:
3.6 mm: H: 81.5°; V: 44.3°; D: 96.3°
8.4 mm: H: 15.1°; V: 8.4°; D: 17.8°

Close Focus Distance

Fixed Lens: 1.1 m (3.61 ft)
PT Lens: 3.6 mm: 1.7 m (5.58 ft); 8.4 mm: 6 m (19.69 ft)

DORI

Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

40 m

(131.23 ft)

15.8 m

(51.84 ft)

8 m

(26.25 ft)

4 m

(13.12 ft)

3.6 mm

51.43 m

(168.73 ft)

20.31 m

(66.65 ft)

10.29 m

(33.75 ft)

5.14 m

(16.87 ft)

8.4 mm

120 m

(393.7 ft)

47.4 m

(155.51 ft)

24 m

(78.74 ft)

12 m

(39.37 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ



Pan/Tilt Range

Fixed Lens: Pan: 0° to 210°; Tilt: -7° to +20° (manual)
PT Lens: Pan: 0° to 350°; Tilt: 0° to +90° (Electric)

Manual Control Speed

Pan: 40°/s; Tilt: 40°/s

Preset Speed

Pan: 40°/s; Tilt: 40°/s

Preset

50

Tour

8 (up to 32 presets per tour)

Power-off Memory

Yes

Smart Event



Human Detection

Yes

Vehicle Detection

Yes

Intelligence



Smart Tracking

Auto tracking lite
Linkage tracking

SMD

SMD 3.0

Active Deterrence



Light Warning

White light warning

Sound Warning

Offers 3 sound alarm.
Sound can be set from 1-100.
Play times can be set from 1-10.

Video



Video Compression

Smart H.265+

Streaming Capability

1 stream

Resolution

Fixed Lens: 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360)
PT Lens: 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); 640 × 360 (640 × 360)

Video Frame Rate

Fixed lens:Main stream: 3M/1080p/720p/640 × 360@(15 fps)
PT lens:Main stream: 3M/1080p/720p/640 × 360@(15 fps)

Bit Rate Control

VBR

Video Bit Rate

H265: 54 kbps–1280 kbps

WDR

Fixed Lens: DWDR
PT Lens: DWDR

White Balance

Auto

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

Yes

Image Rotation

180°

S/N Ratio

≥55 dB

Audio



Built-in MIC

Yes

Built-in Speaker

Yes

Network



Carrier Network System

4G

Wireless Carrier Frequency Band

EAU/EUR:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
LA:
LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD: B38/B40/B41

Max. Transmission Power

4G: Power class3: 23 dBm ± 2.7 dB

Storage

Micro SD card (512 GB)

Management Software

DMSS

Mobile Client

Android;iOS

Certification



Certifications

CE: EN 55032/EN 55035/EN 50130-4/EN 61000-3/EN 62368-1/EN 301489

Port



Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

warning light; audio

Alarm Event

Motion detection; human detection; vehicle detection

Power



Power Supply

Power supply:
Built in 65Wh lithium battery
Comes with 8 W solar panel
Charging:
USB Type-C (Supports QC2.0)

Power Consumption

Super Power Saving Mode: 40 mW (4G keep-alive)
AOV Mode: 170 mW (1 frame every 2 seconds, SD card recording, 4G keep-alive)
Performance Mode 1: 2.4 W (4G streaming, SD card recording, PTZ static, illuminator off)
Performance Mode 2: 3.7 W (4G streaming, SD card recording, PTZ static, illuminator on)
Maximum Power Consumption: 8.0W (4G streaming, SD card recording, PTZ moving, illuminator on, speaker on)

Power Adapter

Optional

Battery Capacity

65 Wh

Environment



Operating Temperature

The unit device:
Operating Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
Battery:
Charging Temperature: –10 °C to +50 °C (+14°F to +122 °F) (The solar panel heating the battery first, and charging begins once the battery is heated to 0 °C)
Discharging Temperature: –20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection

Structure



Product Dimensions

223.2 mm × 130.0 mm × 215.0 mm (8.79" × 5.12" × 8.46") (L × W × H)

Net Weight

1.8 kg (3.97 lb)

Gross Weight

2.5 kg (5.51 lb)

Filter



Remarks

The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
