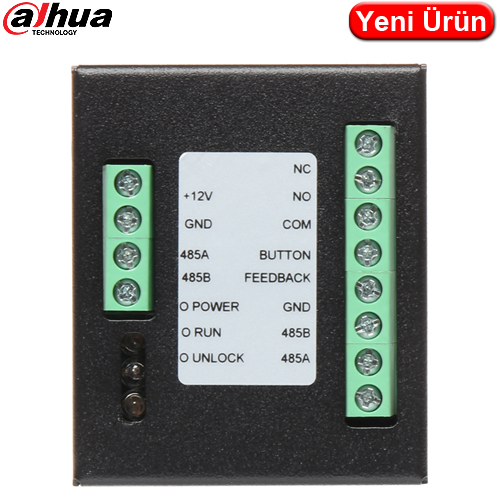

DAHUA (DEE1010B-S2) ACCESS CONTROL EXTENSON MODULE
DAHUA (DEE1010B-S2) ACCESS CONTROL EXTENSON MODULE
Sipariş Kodu34944
Stok KoduE34944
Ürün KoduDEE1010B-S2
MarkaDAHUA
Stok Stok : 1

(DEE1010B-S2) ACCESS CONTROL EXTENSON MODULE

Bu ürünü paylaş:
Ürün Detayları

SPECIFICATION

Support:
  • Cooperation with the DAHUA access control systems,
  • Designed for DAHUA video doorphones
Number of relay outputs: 1 x
Outputs:
  • 1 x NO / NC,
  • 1 x Exit button,
  • 1 x Reed switch ,
  • 2 x  RS-485
Interface: RS-485, Twisted-pair cable - pair of wires
Main features:
  • Door contact and request button for exit inputs
  • Relay to control for example: electric strike or electromagnetic lock
Operation state indication: 3 x Operation status LED indicator
Power supply: 12 V DC / 1 A
Power consumption: ≤ 0.9 W (Standby mode)
≤ 1.0 W (operation)
Operation temp: -10 °C ... 60 °C
Permissible relative humidity: 0 % ... 95 %
Weight: 0.09 kg
Dimensions: 59  x 50  x 21 mm
Manufacturer / Brand: DAHUA
Guarantee: 2 years
