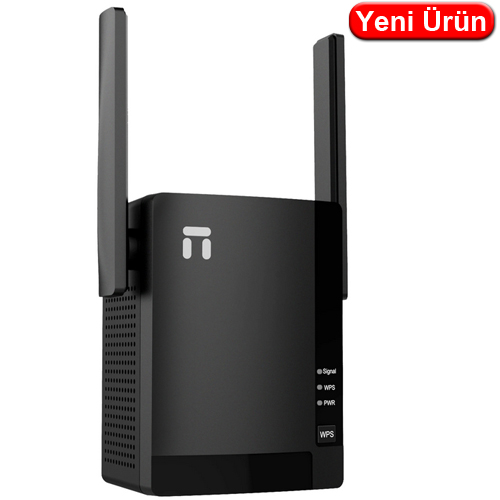

(AC1200) E3 DUAL BAND MİNİ WIFI ROUTER

AC1200 Dual Band Mini WiFi Router

Dual band speed of 1167Mbps
Three modes cope with a variety of application scenarios
Router mode for secured internal network setup from a DSL or cable modem
Smart Signal indicator helps to locate the range extender in a right place
WPS button for quick extender setup.
US, EU plugs available.
Intelligent bandwidth control.
Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time
Quick setup.
Just Plug and Play

Specification

Wireless

Standards	IEEE 802.11b/g/n 2.4GHz IEEE 802.11a/n/ac 5GHz
Signal Rate	Up to 300Mbps2.4GHz UP to 867Mbps 5GHz
Frequency Range	2.4~2.4835GHz and 5.150 ~5.85GHz
Transmit Power	20dBm(MAX)
Data Transfer Rate	802.11ac:80MHZ(433Mbps, 867Mbps)
	802.11n: 40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps) 20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) 801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps) 802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Modes	AP, Repeater, Router
Wireless Security	None / WEP / WPA-PSK / WPA2-PSK / WPA2-Mixed IP Filtering/MAC Filtering/Domain Filtering/IPv6 Filtering

Hardware

Standards	IEEE 802.11b/g/n/ac
Interface	1*10/100Mbps Auto MDI/MDIX RJ45 WAN port 2x2 11b/g/n/ac 2.4 / 5GHz dual band
LED Indicators	Power/Single Good/Single Poor/WPS
Buttons	1x WPS button/1x Reset to default button
Antenna	2x 3dBi 2.4G+3dBi 5G Dual band Omin Antenna
Power Supply	DC 3.35V/3A
Dimensions	80x58x54mm(L x W x H )
Others	Support IPv4 / IPv6/DHCP server/LAN IP set /Firmware Upgrade/Diagnostic/Ping Watchdog /System Log

Others

Certification	FCC, CE, EAC
Environment	Operating Temperature: 0?~40? Storage Temperature: -40?~70? Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Package	1* E3 1* Quick Installation Guide (Multilingual)
