Ürün Detayları

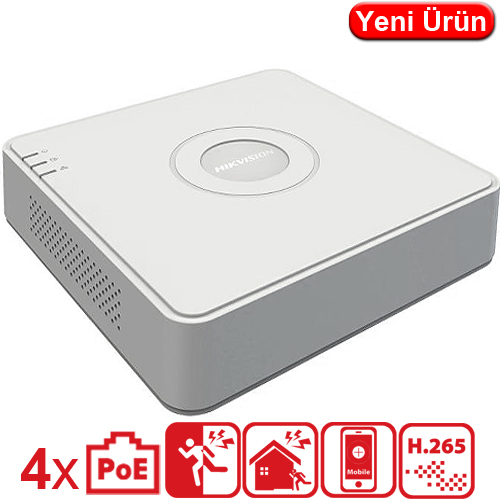

4-ch Mini 4 PoE 1U NVR
- H.265+/H.265/H.264+/H.264 video compression
- Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 4-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- HDMI and VGA simultaneous output
- Video and Audio
- IP Video Input :
4-ch
Up to 6 MP resolution
- Incoming Bandwidth : 40 Mbps
- Outgoing Bandwidth : 60 Mbps
- HDMI Output : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output : 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode : HDMI/VGA simultaneous output
- Decoding
- Decoding Format : H.265+/H.265/ H.264+/H.264
- Recording Resolution : 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback : 4-ch
- Decoding Capability : 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
- Stream Type : Video, Video & Audio
- Network
- Remote Connection : 16
- Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
- Network Interface : 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
- PoE
- Interface : 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power : ≤ 36 W
- Standard : IEEE 802.3 af/at
- Auxiliary Interface
- SATA : 1 SATA interface
- Capacity : Up to 6TB capacity for each disk
- Alarm In/Out : N/A
- USB Interface : Rear panel: 2 × USB 2.0
- General
- Power Supply : 48 VDC, 1 A
- Consumption : ≤ 10 W
- Working Temperature : -10 to +55º C (+14 to +131º F)
- Working Humidity1 : 0% to 90%
- Dimension (W × D × H) : 200 × 200 × 48 mm (7.9" × 8.1" × 1.9")
- ≤ 1 kg (2.2 lb)
- Certification
- CE : EN50130-4, EN 61000-3-2,EN 61000-3-3
