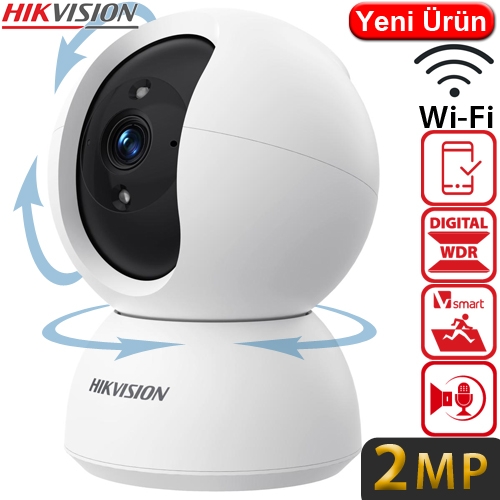

2 MP Indoor Fixed PT Network Camera
- Support Wi-Fi connection
- Support Motion 2.0, human detection
- Built-in microphone and speaker, support two-way audio
- Mobile monitoring via mobile application
- Support on-board storage, up to 512 GB
- Clear imaging against strong back light due to DWDR technology
- 3D DNR technology delivers clean and sharp images
- Camera
- Image Sensor : 1/3" Progressive Scan CMOS
- Max. Resolution : 1920 × 1080
- Min. Illumination : Color: 0.05 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time : 1/3 s to 1/100,000 s
- Day & Night : IR cut filter
- Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focal Length & FOV : 4 mm, horizontal FOV 75°, vertical FOV 45°, diagonal FOV 85°
- Lens Mount : M12
- Aperture : F2.0
- Illuminator
- Supplement Light Type : IR
- Supplement Light Range : Up to 10 m
- Video
- Main Stream :
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)
- Sub-Stream :
50 Hz: 25 fps (768 × 432, 512 × 288)
60 Hz: 30 fps (768 × 432, 512 × 288)
- Video Compression :
Main stream: H.265/H.264
Sub-stream: H.265/H.264
- Video Bit Rate : Up to 1 M bps
- Frame Rate :
Max.15 fps
Self-Adaptive during network transmission
- Audio
- Audio Compression G.711/AAC-LC
- Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate : 8 kHz/16 kHz
- Environment Noise Filtering : Yes
- Network
- Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
- Simultaneous Live View : Up to 4 channels
- API : ONVIF (Profile S, Profile T, Profile G), SDK
- User/HostAdministrator
- Security : Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
- Client : iVMS-4200, Hik-Connect, Hik-Partner-Pro
- Wi-Fi
- Encryption Mode : WPA-PSK/WPA2-PSK
- Frequency Range : 2.412 GHz to 2.472 GHz
- Channel Bandwidth : 20 MHz
- Transfer Rate :
11b: up to 54 Mbps,
11g: up to 54 Mbps,
11n: up to 150 Mbps
- Wireless RangeUp to 50 m (The performance varies based on actual environment)
- Image
- Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software
- Day/Night Switch : Auto
- Wide Dynamic Range (WDR) : Digital WDR
- Privacy Mask : 4 programmable polygon privacy masks
- Interface
- Ethernet Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage : Built-in memory card slot, support microSD card, up to 512 GB
- Built-in Microphone : Yes,1 built-in microphone
- Built-in Speaker : Yes, 1 built-in speaker
- Reset Key : Yes
- Event
- Basic Event : Motion detection (support alarm triggering by specified target type (human)), exception
- General
- Material : Plastic
- Dimension : Ø80 mm × 122 mm (Ø3.14" × 4.8")
- Package Dimension : 105 mm × 105 mm × 190 mm (4.1" × 4.1" × 7.5")
- Approx. : 216 g (0.48 lb.)
- With Package Weight : Approx. 554 g (1.22 lb.)
- Storage Conditions : -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions : -10 °C to 45°C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
- General Function : Heartbeat,mirror
- Power : 5 VDC ± 10%, 1 A, max. 5 W
- Flashing Light : Red and Blue Light
- Approval
- RFCE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
- EMC : CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
- Safety : CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment : CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU
