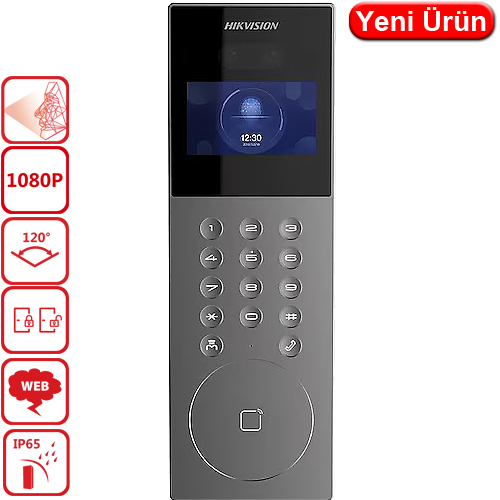

Facial Recognition Door station
- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP wide-angle HD lens
- IP65 protection level
- Built-in M1 card reading module
- Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand
- Convenient configuration via Web remotely
- Convenient unlock methods: face, cards, PIN code
- System parameters
- Operation system : Linux
- ROM : 1 GB
- RAM : 4 GB
- Processor : Embeded high performance processor
- Display parameters
- Screen size : 4.3-inch
- Operation method : /
- Type : Colorful LCD
- Resolution : 800 × 480
- Video parameters
- Lens : 2 MP HD camera
- Resolution :
Main stream: 1080p@30fps, 720p@30fps
Sub stream: VGA@25fps, VGA@30fps
- FOV/
- Wide dynamic range (WDR) : Digital WDR/120 dB
- Supplement light : IR light, up to 3 m
- Video compression standard : H.264; h.265; MJPEG
- Audio parameters
- Audio input : 1 built-in omnidirectional microphone
- Audio compression standard : G.711 U?G.711 A?Opus?AAC-LD?AAC-LC?G.726?G.722.1
- Audio output : 1 built-in loudspeaker
- Audio compression bitrate : 64 Kbps
- Audio quality : Noise suppression and echo cancellation
- Volume adjustment : Adjustable
- Capacity
- User capacity : 10,000
- Face capacity : 5000
- Card capacity : 50,000
- Fingerprint capacity : /
- Network parameters
- Network protocol : TCP/IP, RTSP, ipv6, onvif
- Wi-Fi/
- Bluetooth/
- 3G/4G/
- Device interfaces
- Alarm input : 4
- Network interface : 1 RJ-45 10/100/1000 Mbps self-adaptive
- TAMPER : 1
- Exit button : 1
- RS-485 : 2 RS-485 (Half duplex, HIKVISION)
- USB : /
- Wiegand : /
- TF card : /
- Alarm output : /
- Lock control : 2 relays, Max. 30 VDC, 2 A
- Door contact input : 1
- General
- Button : /
- Installation : Flush mounting
- Indicator : /
- Weight :
Net weight: 0.995 kg
Gross weight: 1.592 kg
- Protective level : IP65
- Working temperature : -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity : 10% to 90% (no-condensing)
- Dimension (W × H × D) : 373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72")
- Battery/
- Power supply : 12 VDC, 1.5 A
- Application environment : Outdoor
- Power consumption : ≤ 13 W
- Language : English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
