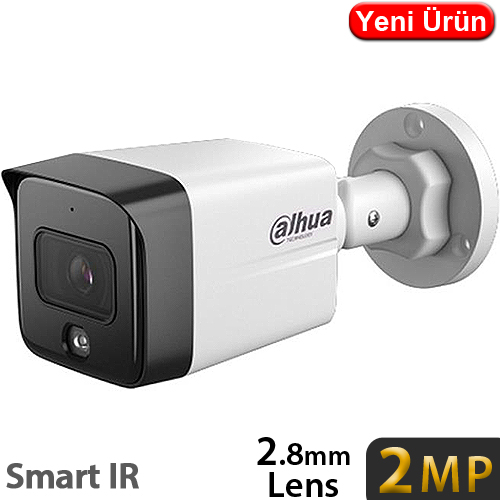

(IPC-HFW1230TC1-SA) 2MP 2.8MM SD KART DAH. MİK. METAL SMART IR BULLET IP KAMERA-30MT.

* The parameters and datasheets below can only be applied to 1230-S6 series
• 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 2 MP (1920 ×1080)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, and the max. illumination distance is 30 m.
• DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access.
• 12 VDC/PoE power supply, easy for installation.
• IP67 protection.
• Supports human detection.

Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It
has dust-proof function, and the enclosure can work normally after
soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage
tolerance (wide voltage range), and it is widely applied to outdoor environment
with instable voltage.

Technical Specification
Camera
Image Sensor  :  1/2.8" CMOS
Max. Resolution   :  1920 (H) × 1080 (V)
ROM   :  16 MB
RAM  :  64 MB
Scanning System   :  Progressive
Electronic Shutter Speed   :  Auto/Manual 1/3 s–1/100,000 s
Min. Illumination  :
0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance   :  Up to 30 m (98.43 ft) (IR)
Illuminator   :  On/Off Control Auto;Manual
Illuminator Number   :  1 (IR LED)
Angle Adjustment  :
Pan: 0°–360°;
Tilt: 0°–90°;
Rotation: 0°–360°

Lens
Lens Type   :  Fixed-focal
Lens Mount   :  M12
Focal Length   :  2.8 mm; 3.6 mm
Max. Aperture   :  F2.0
Field of View  :
2.8 mm: H: 101°; V: 54°; D: 119°
3.6 mm: H: 86°; V: 47°; D: 103°
Iris Control Fixed  :
Close Focus Distance
2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 0.9 m (2.95 ft)
DORI
Distance  :
Lens            Detect              Observe               Recognize           Identify
2.8 mm 45.5 m ( 149.27 ft) 18.2 m ( 59.71 ft) 9.1 m ( 29.86 ft) 4.6 m ( 15.09 ft)
3.6 mm 52.4 m ( 171.92 ft) 21.0 m ( 68.90 ft)10.5 m ( 34.45 ft) 5.2 m ( 17.06 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system
(EN-62676-4) for defining the ability of a person viewing the
video to distinguish persons or objects within a covered area.
The numbers in this table do not reflect intelligent function
distances. For intelligent function distances, refer to installation
and commissioning manual/project design tool.

Intelligence
Human Detection  :  Support the classification and accurate detection of human
Smart Search  :   Work together with Smart NVR to perform refineintelligent search, event extraction and merging to event videos
Video
Video Compression   :  H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec   :  Smart H.265+; Smart H.264+
Video Frame Rate   :
Main stream: 1920 × 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30fps)
*The values above are the max. frame rates of
each stream; for multiple streams, the values will be
subjected to the total encoding capacity.
Stream Capability   :  2 streams
Resolution   :
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240)
Bit Rate Control   :  VBR;CBR
Video Bit Rate   :
H.264: 32 kbps–4096 kbps;
H.265: 12 kbps–4096 kbps
Day/Night   :  Auto(ICR)/Color/B/W
BLC   :  Yes
HLC   :  Yes
WDR   :  DWDR
White Balance   :  Auto; natural; street lamp; outdoor; manual; regionalcustom
Gain Control   :  Auto/Manual
Noise Reduction   :  3D NR
Motion Detection   :  OFF/ON (4 areas, rectangular)
Region of Interest   :  (RoI) Yes (4 areas)
Smart Illumination   :  Yes
Image Rotation   :  0°/90°/180°/270° (Support 90°/270° with 1080presolution and lower)
Mirror   :  Yes
Privacy Masking   :  4 areas

Alarm
Alarm Event   :
Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception; SMD (human)
Network
Network Port   :  RJ-45 (10/100 Base-T)
SDK and API   :  Yes
Network Protocol   :
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast;ICMP; IGMP; P2P
Interoperability   :  ONVIF (Profile S & Profile T); CGI
User/Host   :  6 (Total bandwidth: 24 M)
Storage   :  FTP
Browser   :  IE; Chrome; Firefox
Management Software   :  Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client   :  iOS;Android

Cyber Security
Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade Certification

Certifications
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Power
Power Supply   :  12 VDC/PoE (802.3af)
Power Consumption   :
Basic: 1.3 W (12 VDC), 1.6 W (PoE);
Max.: 3.3 W (12 VDC),4.2 W (PoE) (H.265 + intelligence on + WDR+ IR intensity)
Environment
Operating Temperature   :  –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity   :  ≤95%(RH), non-condensing
Storage Temperature   :  –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity   :  ≤95%(RH), non-condensing
Protection   :  IP67
Structure
Casing Material   :  Metal + Plastic
Product Dimensions   :  180.4 mm × 70 mm × 70 mm (7.10" × 2.76" × 2.76") (L ×W × H)
Net Weight 0.29 kg (0.64 lb)
Gross Weight 0.40 kg (0.88 lb)
