Ürün Detayları

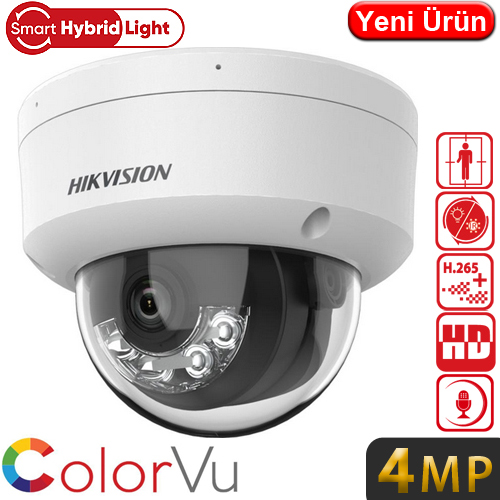

4 MP Smart Hybrid Light Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Support Human Detection
- Efficient H.265+ compression technology
- Smart Hybrid Light: advanced technology with long range coverage
- Built-in microphone for real-time audio security
- -F model supports on-board storage up to 512 GB (SD card slot)
- camara
- Image Sensor : 1/2.8" Progressive Scan CMOS
- Max. Resolution : 2560 × 1440
- Min. Illumination : Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time : 1/3 s to 1/100,000 s
- Day & Night : IR cut filter
- Angle Adjustment : Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens Type : Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°
4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
- Lens Mount : M12
- Iris Type : Fixed
- Aperture : F2.2
- Depth of Field :
2.8 mm: 0.9 m to ∞
4 mm: 1.1 m to ∞
- DORI
- DORI :
2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m
4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
- Illuminator
- Supplement Light Type : IR,White Light
- Supplement Light Range : Up to 20 m
- Smart Supplement Light : Yes
- IR Wavelength : 850 nm
- Video
- Main Stream :
50 Hz:
20 fps (2560 × 1440),
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440),
24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream :
50 Hz: 25 fps (1280 × 720,640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720,640 × 480, 640 × 360)
- Video Compression :
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate : 32 Kbps to 8 Mbps
- H.264 Type : Baseline Profile,Main Profile,High Profile
- H.265 Type : Main Profile
- Bit Rate Control : CBR,VBR
- Region of Interest (ROI) : 1 fixed region for main stream
- Audio
- Audio Type : Mono sound
- Audio Bit Rate : 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Environment Noise Filtering : Yes
- Audio Sampling Rate : 8 kHz/16 kHz
- Audio Compression : G.711ulaw/AAC-LC
- Network
- API : ONVIF (Profile S, Profile T, Profile G (only -F model supports Profile G)),ISAPI,SDK
- Security Password : protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous : Live View Up to 6 channels
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
- User/Host :
Up to 32 users
3 user levels: administrator, operator, and user
- Client : iVMS-4200,Hik-Connect
- Web Browser :
Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
- Image
- Wide Dynamic Range (WDR) : Digital WDR
- SNR : ≥ 52 dB
- Day/Night Switch : Day,Night,Auto,Schedule
- Image Enhancement : BLC,HLC,3D DNR
- Image Settings : Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy Mask : 1 programmable polygon privacy mask
- Interface
- Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage :
-F model: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone : Yes,1 built-in microphone
- Reset Key : -F model supports
- Event
- Basic Event : Motion detection (support alarm triggering by specified target type (human)), exception
- Linkage Upload to memory card (-F model supports), send email, notify surveillance center, trigger recording (-F model supports), trigger capture
- General
- Power :
12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7 W
- Material : Plastic
- Dimension : Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
- Package Dimension : 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight Approx. : 570 g (1.2 lb.)
- With Package Weight Approx. : 780 g (1.8 lb.)
- Storage Conditions : -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions : -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Língua : English, Ukrainian
- General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
- EMC :
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
KC: KN32: 2015, KN35: 2015
- Safety :
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment :
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
