Ürün Detayları

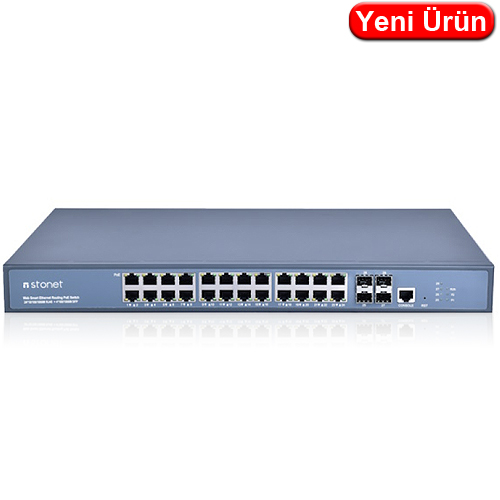

SC-532404MPU24 Port POE Gigabit L3 Yönetilebilir Omurga Switch(450W)
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standards
- Each port supports full-duplex 802.3x flow control and half-duplex backpressure flow control
- 4*1000M SFP, 24*1000M POE port
- Supports standard IEEE 802.3af/at protocol, single port 15.4W/30W output
- All ports support half/full duplex mode automatic adaptation
- Support port mirroring, support SNTP protocol
- Support for MAC filtering, MAC address binding, 802.1X authentication
- Storage-forwarding switching mode
- Flow control switch, turn on or off flow control function
- Supporting MAC Address Self-learning
- 0~55°C operating temperature range
- AC 220 power supply, flexible input
- Dynamic LED indicator showing device operating status and providing simple troubleshooting
|
Specifications |
parameter |
|
switching capacity |
128Gbps |
|
Packet forwarding rate |
132Mpps |
|
MAC table entry |
8K |
|
Buffer value |
4M |
|
Jitter delay |
9.62ns |
|
Size |
440mm × 265mm × 45mm |
|
weight |
5kg |
|
Power |
450W |
|
working temperature |
0~55°C |
|
Storage temperature |
-10~70°C |
|
Working humidity |
10%~90% no condensation |
|
Storage humidity |
5%~95% no condensation |
|
VLAN |
Maximum support for 4096 VLANs |
|
Support port-based VLAN |
|
|
VLAN Supporting 802.1Q Standard |
|
|
spanning tree |
Support RSTP Fast Spanning Tree Protocol |
|
Ring network |
Supporting Fast Loop Networks |
|
Erps |
support |
|
Route |
Static Route, OSPF |
|
Port aggregation |
Support static aggregation |
|
Port mirroring |
Support multi-to-one port mirroring without restriction on the number of mirror source ports |
|
Loop Guard |
Supporting Loop Detection/Loop Avoidance |
|
Port flow control |
Supporting half-duplex control based on backpressure |
|
line rate |
Support port-based input/output bandwidth management |
|
IGMP Snooping |
Support IGMP Snooping |
|
DHCP |
Support DHCP Client |
|
Storm suppression |
Supporting suppression of broadcasting, multicast, unicast, etc |
|
Negotiation mode |
Support port auto-negotiation (self-negotiation transmission rate and duplex mode) |
|
system maintenance |
Supporting profile upload/download |
|
Support upgrade package upload |
|
|
Support WEB to restore factory configuration |
|
|
Support System Logging Function |
|
|
Network management |
Support WEB interface management, CONSOLE,Telnet |
