Ürün Detayları

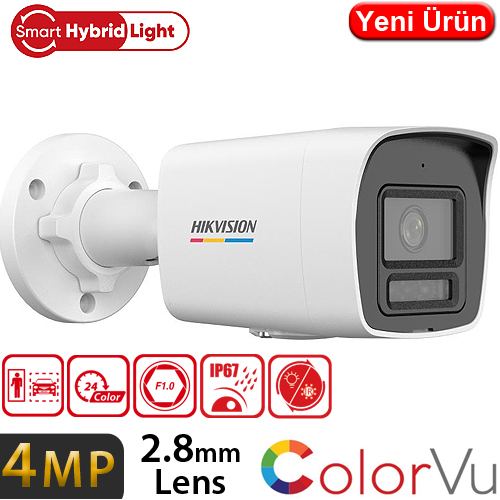

4 MP ColorVu 3.0 Fixed Bullet Network Camera
- HikAI-ISP for excellent noise reduction effect
- Super clear 24/7 colorful imaging with ColorVu 3.0 technology
- Motion Detection 3.0, more accurate on person and vehicle classification
- -SL/-SRB: Two-Way Audio via camera and Hik-Connect
- -SL/-SRB: Strobe Light & Audio Alarm to deter intruders
- Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
- -F: On-board storage with SD card up to 512 GB
- Water and dust resistant (IP67)
- Camera
- Image Sensor : 1/3" Progressive Scan CMOS
- Max. Resolution : 2560 × 1440
- Min. Illumination : Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time : 1 s to 1/100,000 s
- Day & Night : IR cut filter
- Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type : Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV :
2.8 mm, horizontal FOV 95.7°, vertical FOV 51.7°, diagonal FOV 113.7°
4 mm, horizontal FOV 79.6°, vertical FOV 43.2°, diagonal FOV 93.2°
- Lens Mount : M12
- Iris Type : Fixed
- Aperture : F1.0
- Depth of Field :
2.8 mm: 1.7 m to ∞
4 mm: 1.6 m to ∞
- DORI
- DORI :
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light Type : IR,White Light
- Supplement Light Range : Up to 30 m
- Smart Supplement Light : Yes
- IR Wavelength : 850 nm
- Video
- Main Stream :
50 Hz:
25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream :
50 Hz: 25 fps (1280 × 720,640 × 480,640 × 360)
60 Hz: 24 fps (1280 × 720,640 × 480,640 × 360)
- Video Compression : Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate : 32 Kbps to 16 Mbps
- H.264 Type : Baseline Profile,Main Profile,High Profile
- H.265 Type : Main Profile
- Bit Rate Control : CBR,VBR
- Region of Interest (ROI) : 1 fixed region for main stream and sub-stream
- Scalable Video Coding (SVC) : H.264 and H.265 encoding
- Audio
- Audio Type : Mono sound
- Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Audio Bit Rate : 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate : 8 kHz/16 kHz
- Environment Noise Filtering : Yes
- Network
- Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
- Simultaneous Live View : Up to 6 channels
- API : ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Client : iVMS-4200;Hik-Connect
- Web Browser :
Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
- Image
- Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch : Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) : 120 dB
- SNR : ≥ 52 dB
- Image Enhancement : BLC,HLC,3D DNR
- Privacy Mask : 4 programmable rectangular privacy masks
- Interface
- Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage :
-LIU?LIU/S(L)(RB):NA
-LIUF?LIUF/S(L)(RB):Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone : Yes,1 built-in microphone
- Built-in Speaker :
-LIU?-LIUF: NA
-LIU/S(L)(RB)?-LIUF/S(L)(RB): Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB
- Audio : NA
- Alarm : NA
- Reset Key :
-LIU?LIU/S(L)(RB):NA
-LIUF?LIUF/S(L)(RB):YES
- Event
- Basic Event : Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
- LinkageUpload to FTP,notify surveillance center,send email,trigger recording
- General
- Power :
-LIU: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W,
-LIUF: 12 VDC ± 25%, 0.57 A, max. 6.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W,
-LIU/S(L)(RB)?-LIUF/S(L)(RB): 12 VDC ± 25%, 0.72 A, max. 8.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
- Material : Front cover: metal, body: plastic, bracket: plastic
- Dimension :
-LIU?-LIUF: 69.1 mm × 66.9 mm × 172.9 mm (2.7" × 2.6\" × 6.8\")
-LIU/S(L)(RB)?-LIUF/S(L)(RB): 69.1 mm × 67.4 mm × 179 mm (2.7 × 2.7\" × 7.1\")"
- Package Dimension : 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7")
- Weight :
-LIU: Approx. 330 g (0.73 lb.)
-LIUF: Approx. 335 g (0.74 lb.)
-LIU(F)/SL: Approx. 450 g (0.99 lb.)
-LIU(F)/SRB: Approx. 450 g (0.99 lb.)
- With Package Weight :
-LIU: Approx. 445 g (0.98 lb.)
-LIUF: Approx. 450 g (0.99 lb.)
-LIU(F)/SL: Approx. 480 g (1.06 lb.)
-LIU(F)/SRB: Approx. 480 g (1.06 lb.)
- Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language : English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
- General Function : Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- Flashing Light :
-LIU?-LIUF:NA
-LIU(F)/SL:White Light
-LIU(F)/SRB:Red and Blue Light
- Approval
- EMC : CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety : CB: IEC 62368-1: 2014+A11
- Environment :
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection : IP67: IEC 60529-2013
